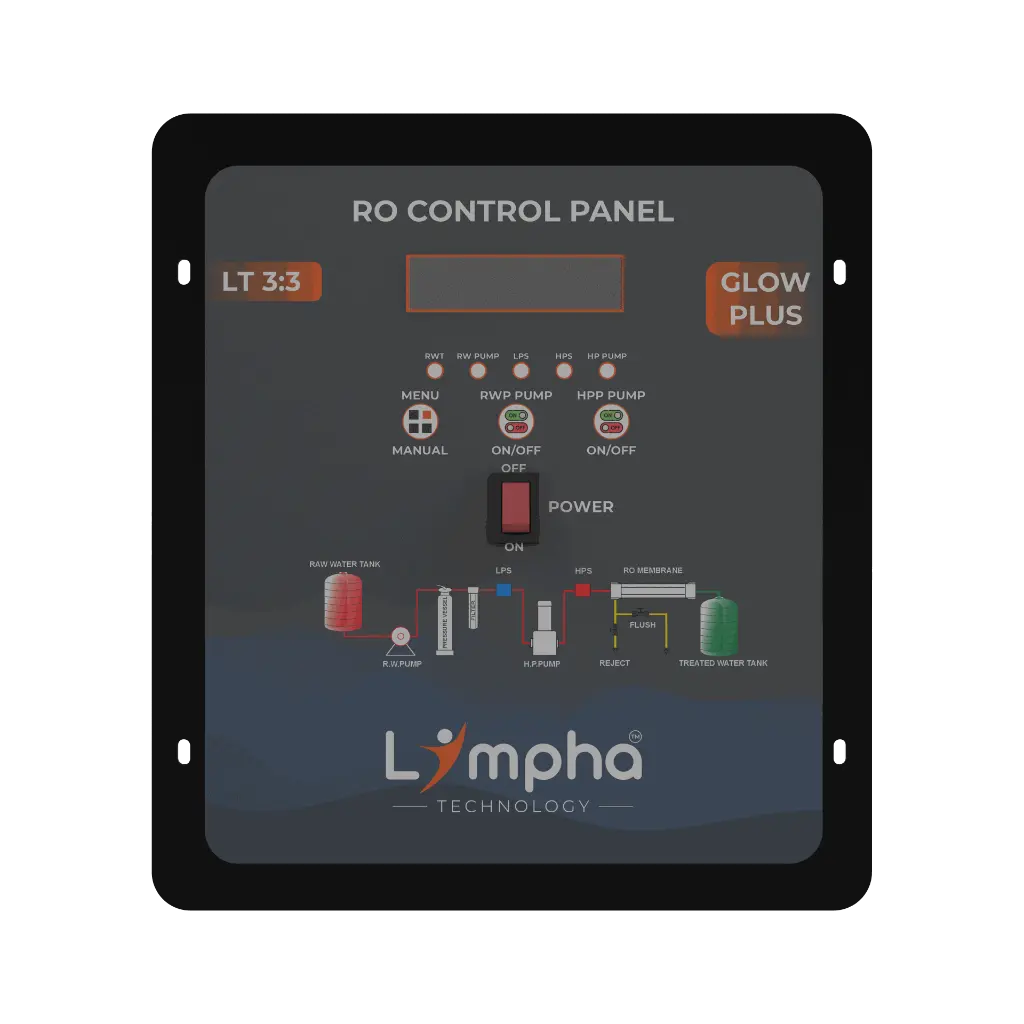

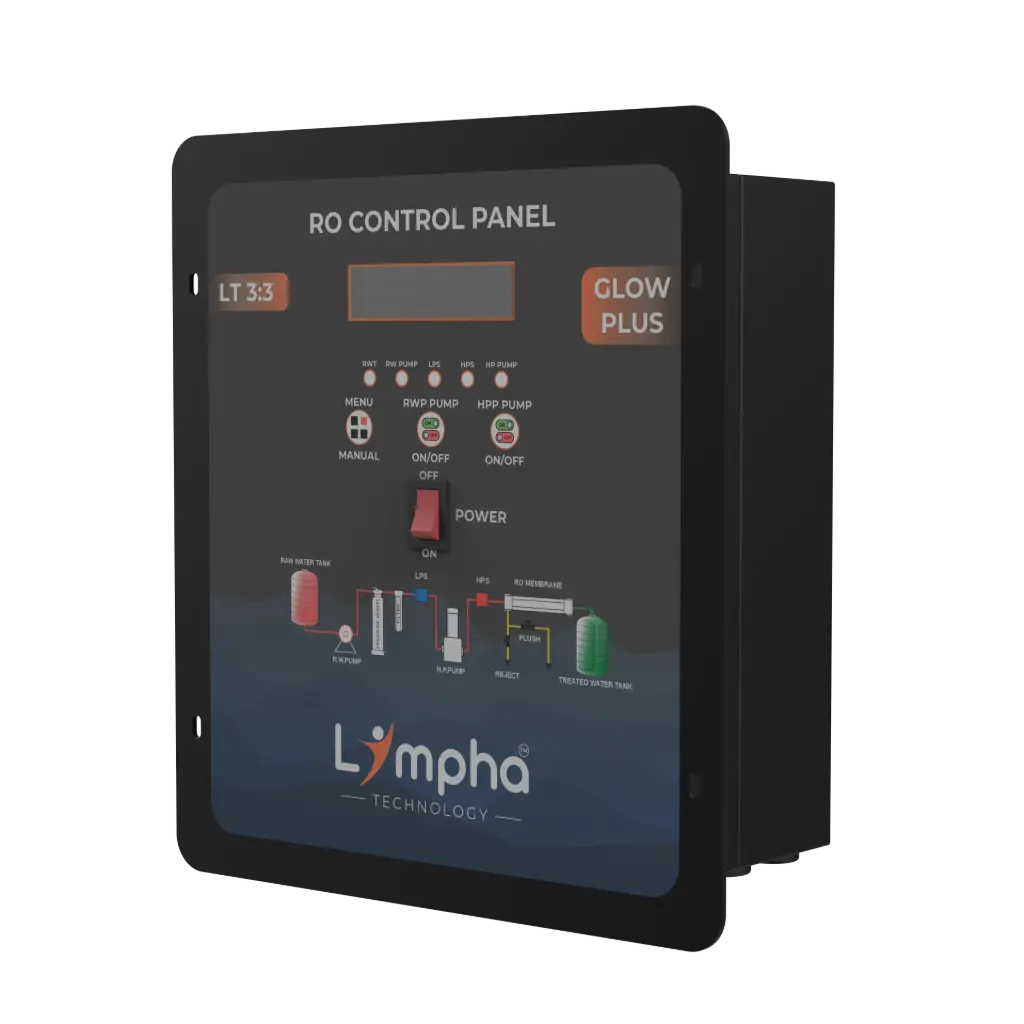

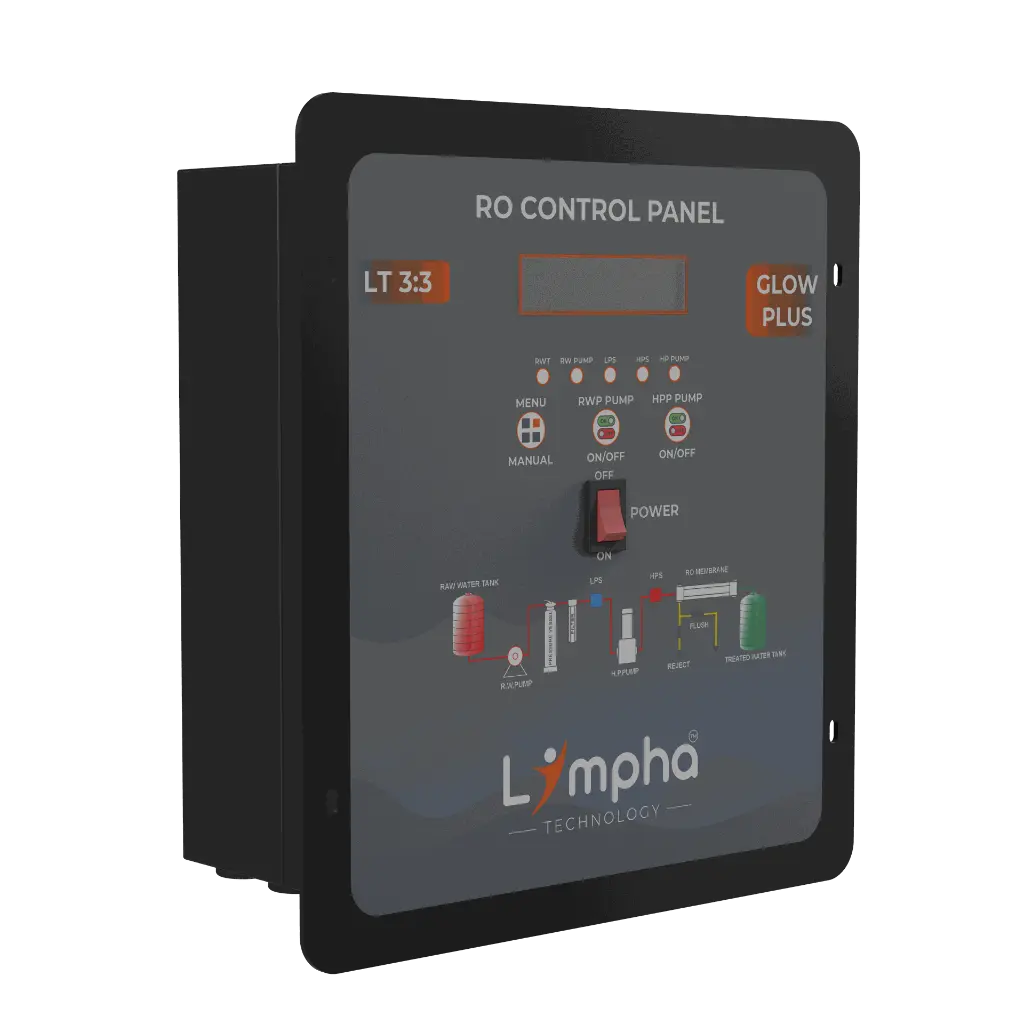

RO CONTROL PANEL GLOW PLUS 3:3.
6 sold in last 24 hours
This
INDUSTRIAL RO CONTROLLER.
- MICROCONTROLLER BASED QUALITATIVE ACCURACY ORIENTED PRE-PROGRAMED CONTOLLER WITH REQUIRED SAFETY FEATURES LIKE,
- PRESSURE
- LEVEL
- INPUT LOW AND HIGH VOLTAGE PROTECTION
- OVER CURRENT
- WHICH HELPS RO FOR SAFE, SMOOTH, AND SMART AUTOMATION.
Click 'Edit' to add a custom description with snippets.
FEATURES.
- MICRO-CONTROLLER AND SMPS BASED RO CONTROLLER.
- ALL AMPV'S CONNECTION.
- DISPLAY-2 LINE 16-BIT LCD.
- AUTO AMPEARE SETTINGS FOR RWP & HPP.
- HIGH & LOW VOLTAGE PROTECTION.
- RWP & HPP OVERLOAD AND DRY RUN PROTECTION.
- UV & DOSING PUMP PROTECTION.
- HPS & LPS MONITORING.
- DOSING LEVEL FLOAT.
- SERVICE AND TRIP TIME.
- BACK WASH AND RINSE TIME.
- 3-PHASE -VOLTAGE DISPLAY, MONITORING SINGLE PHASE PREVENTER AND VOLTAGE UNBALANCE PROTECTION IN ALL 3-PHASE PANELS.
- 7 SEGMENT DISPLAY.
- TDS AND CONDUCTIVITY DISPLAY.
- AUTO AND MANUAL MODE OPTION.
- RWT AND TWT TANK FLOAT.
- FLUSHING AND FLUSHING INTERVAL TIME.
- ALL SETTING ARE EDITABLE.
TECHNICAL SPECIFICATION.
- SUPPLY VOLTAGE; 170V AC - 280V AC.
- CURRENT RANGE 0-30A.
- WORKING TEMPRATURE : 0-50 C'.
- PHASE 3:3.
- PUMP CAPACITY : RWP 5 HP AND HPP 5 HP.
- SIZE : 250(H) X 225(L) X 90(D).
