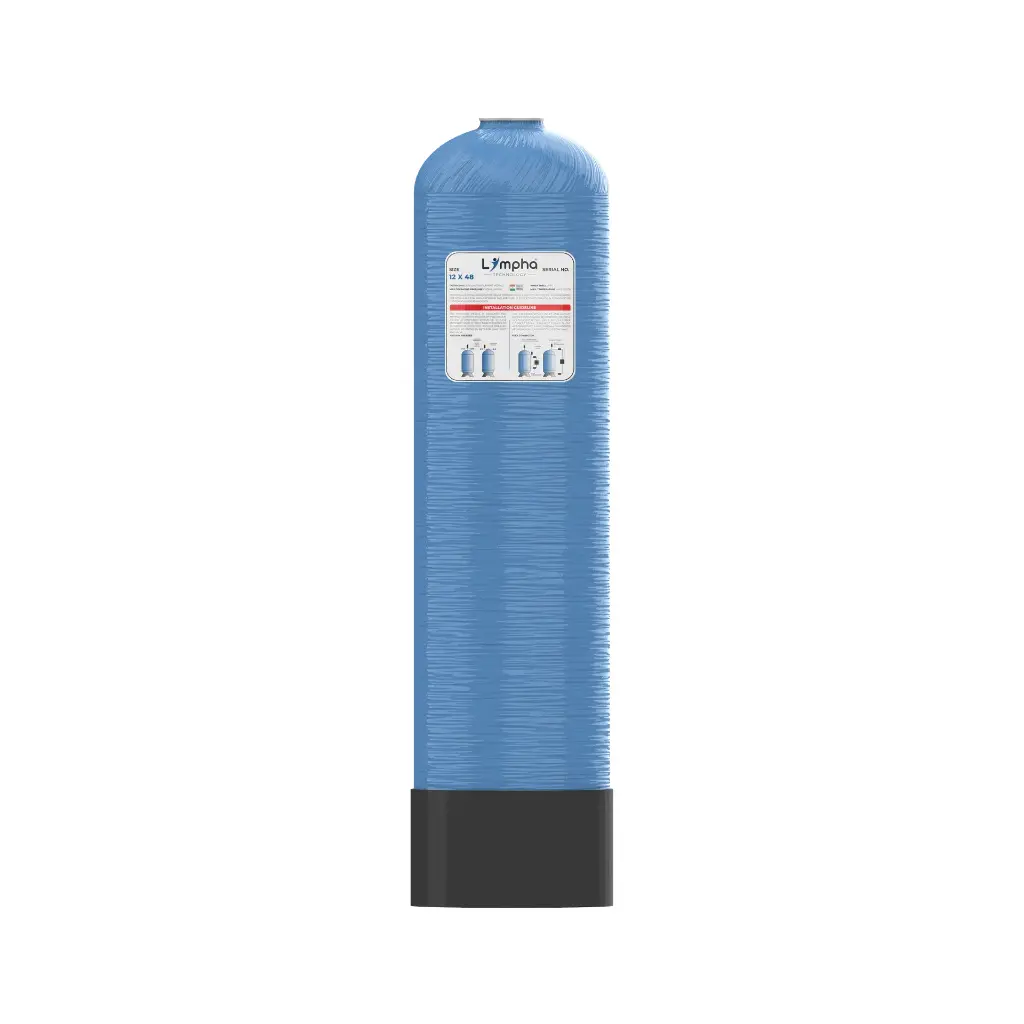

1248 FRP PRESSURE VESSEL
3 sold in last 24 hours
This
MATERIAL OF CONSTRUCTION.
- OUTER SHELL : POLYESTER FILAMENT WOUND.
- Inlet-outlet threaded insert standard 2½” and 4” mounted made from High Injection Mold. Polyethylene inner shell.
OPERATING PARAMETERS.
- Maximum operating pressure – 150PSI (10 BAR).
- Maximum operating temperature – 120°F (49' C).
- Designed For Maximum Negative Pressure Of 5'' Hg Vaccume Below Atmospheric Pressure.
FEATURES.
- Inner Liner single piece seamless HDPE made from Blow Moulding ranging from 10” to 21” dia.
- Inner Liner single piece seamless LLDPE made from Rotational Moulding ranging from 24” to 48” dia.
- Outer shell is made of fiberglass epoxy filament.
WHY LYMPHA FRP VESSEL?
- Corrosion Resistant And Compatible For Higher Strength, Temperature & Pressure Capabilities.
- Burst Test At 600 psi.
- Seamless Robust Structure With Smooth Outer Finish.
OPENING.
- 2.5" TOP.
VOLUME.
- 82 LTRS.
OPERATING PRESSURE.
- 10 BAR (10.5 KG/CM²).
DIMENSION (mm).
- DIAMETER : 309.
- TOTAL HEIGHT : 1240.
BASE.
- STANDARD.
MAX TEMPRATURE.
- 49'C.
